Mitsubishi Shogun, Pajero, L300, L200 with 4D56 Engine turbo charger core 49177-01510 49177-01511 MD168053 49177-08020 Turbo System Parts
Specifiions
| Part Number | 49177-01510 |
| Previous Part Number | 4917701510, 49177-01511 |
| OE Number | MD168053, MD168054, MD094740 |
| Year | 1989-90 |
| Description | Mitsubishi Shogun, Pajero, L300, L200 |
| CHRA | 49177-08020 NEW IN STOCK, MADE IN wuxi |
| Turbo Model | TDO4-10T/4, TD04 |
| Engine | 4D56, 4D56DE |
| Engine Manufacturer | Mitsubishi |
| Displacement | 2.5L, 2477 ccm, 4 Cylinders |
| Fuel | Diesel |
| KW | 64/87 HP |
| Bearing Housing | 49177-25100 NEW IN STOCK |
| Turbine Wheel | 49177-30120 NEW IN STOCK |
| Comp. Wheel | 49171-41410 NEW IN STOCK |
| Back plate | 49173-22500 NEW IN STOCK |
| Heat shield Number | 49170-19100 NEW IN STOCK |
| Repair Kit | 49177-80400/49177-80410 NEW IN STOCK |
| Turbine Housing | 49177-15122 NEW IN STOCK |
| Compressor Cover | 49177-55880 |
| Turbine Housing AR | 4.0 |
| Gasket (turbine inlet) | 210501 |
| Gasket (turbine outlet) | 210502 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Mitsubishi |
| Condition | Rebuilt |
Appliions
1992-96 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
1988-96 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
1986-89 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
1989-90 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
1990-91 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1.By sea 2.By air cargo 3.By express service.
Delivery term
Our extensive stock of turbochargers and CHRA allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
1.50-150 pcs--7-15 days 2.150-300 pcs--15-25 days 3.over 300 pcs -- 30 days.

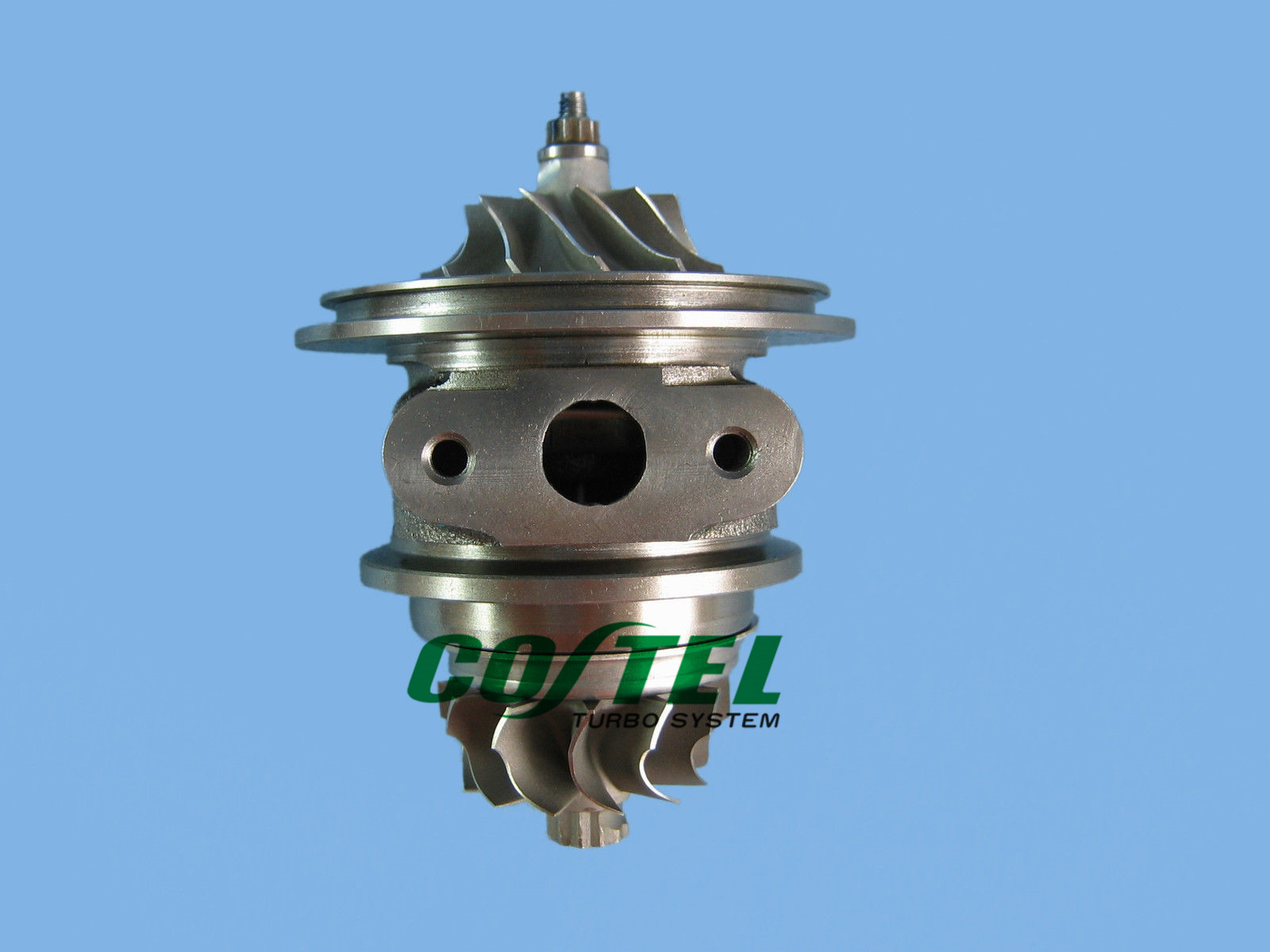

COSTEL CHRA Core Assemblies
What material costel use for key parts:
A, The turbine wheels casting is made from fresh high nickel(>73%) alloy Inconel 713,the equivalent being K418;
B, The compressor wheels casting made from CW355;
What balance machine use:
A, All cartridges are balanced with Turbo Technics VSR or schenck machine.
B, All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.
Products Coverage:
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
